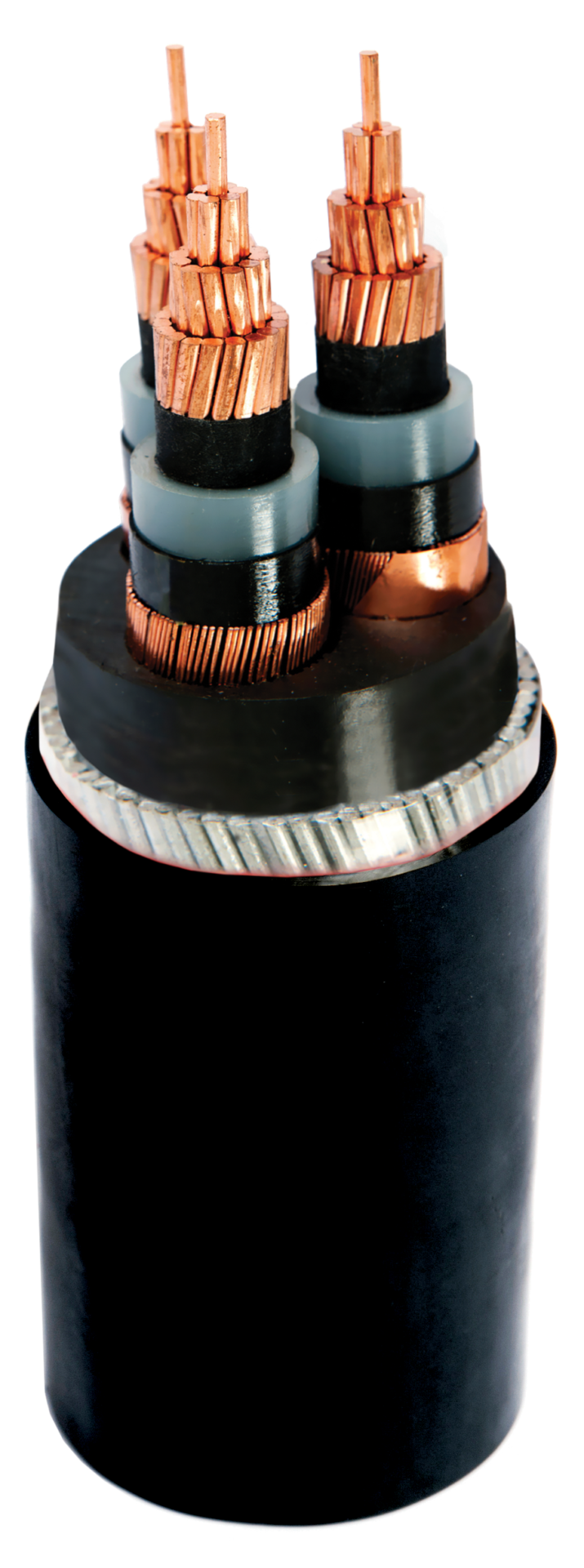

MV Power Cables (6.35/11 kV up to 18/30 kV CU/XLPE/CWA/LEAD/HDPE single core up to 1000 mm²)
6.35/11 kV up to 18/30 kV CU/XLPE/CWA/LEAD/HDPE single core up to 1000 mm²
KAHRAMAA Requirements | stranded circular compacted or segmental copper conductor Class 2, inner semi conductive compound, cross linked polyethylene insulation, outer semi conductive compound, water blocking tape, copper wire and copper tape screen, water blocking tape, lead alloy sheath, bitumen tape or coating, high density polyethylene sheath, graphite coating.
Designed and manufactured according to international standards: IEC 60502-2, and in accordance with the specifications and requirements of KAHRAMAA.
